Angle Joints DIN71802

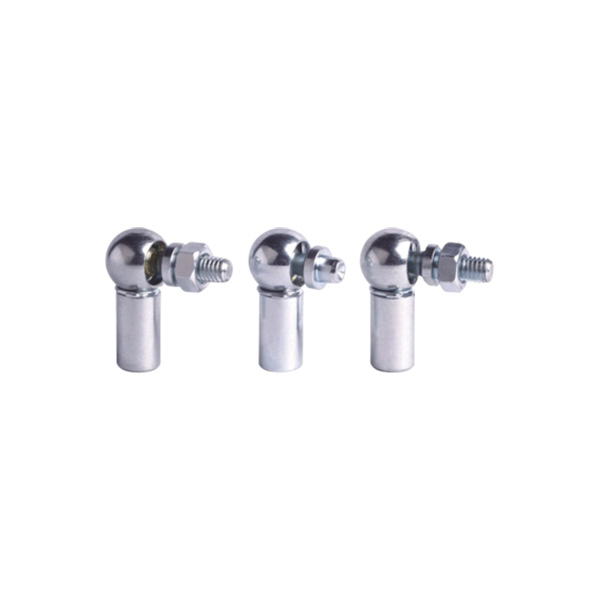

Angle Joints DIN71802 from China Dongzhou are our standard ball joints suitable for light to medium industrial/mechanical load applications requiring smooth action and good wear resistance. Sealing cap and nut are option as you required.
Send Inquiry
Product Description
Angle Joints DIN71802 are a mechanical element used for connection and torque transmission. Its design meets the requirements of the International Organization for Standardization, ensuring global interchangeability and compatibility. The product consists of a ball head, a ball seat and a ball handle. The ball head is usually threaded and can be connected to the ball seat, while the ball handle is used to fix the position of the ball head and the ball seat.
|
Dimensions |
Weight Kg/1000 pieces for type |
|||||||||
|
d1 h9 |
d2 |
l2 士 0.3 |
l3 士 0.3 |
e min. |
d5 h11 |
l1 士 0.2 |
a 士 0.3 |
SW h14 |
A and AS C and CS |
B and BS |
|
8 |
M 5 |
10.2 |
9 |
10.2 |
5 |
4.0 7.5 |
22 |
7 |
15.20 |
12.85 13.35 |
|
10 |
M 6 |
12.5 |
11 |
11.5 |
6 |
4.5 8.0 |
25 |
8 |
25.20 |
21.30 22.00 |
|
13 |
M 8 |
16.5 |
13 |
14.0 |
8 |
5.0 10 |
30 |
11 |
53.10 |
43.10 45.00 |
|
16 |
M 10 M 12 |
20.0 |
16 |
15.5 |
10 |
6.0 13 |
35 |
13 |
103.8 |
82.30 86.60 |
|
19 |
M 14X1.5 M 14X2 M 16 |
28.0 |
20 |
21.5 |
14 |
12 18 |
45 |
16 |
220.9 |
181.0 188.7 |
1)Type A、B、C without safety clip on the ball socket；
Type AS、BS、CS with safety clip on the ball socket.
2) Ball stud of Type C、 CS with spanner surface.
3) Alternative left-hand thread for the ball socket.
4) Ball socket with or without spanner surface or hexagon surface as required .
5) Ball stud with or without sealing cap as required.
6) Ball stud with or without nut as required.
Material and surface treatments:
1)Ball stud: medium carbon steel 45;Ball socket: low carbon steel Q235A; Snap ring and safety clip:spring steel.Zinc plating.
2)Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation.
