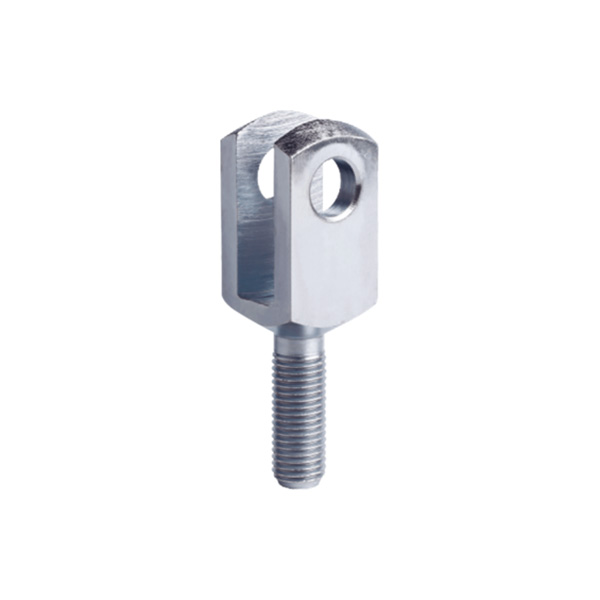

Clevises with Male Thread DIN71752 DIN ISO8140 CETOP

Clevises with Male Thread DIN71752 DIN ISO8140 CETOP is our standard metric clevises. Stainless steel male forks are also available.
The male thread clevises can be assembled with folding spring bolts, pins and clips.

Send Inquiry

Product Description

Part No.	mm Dimensions													KG Weight
	d₁ H9	g ±0.5	a₁ h11	a₂ +0.50 -0.20	b +0.7 +0.15	d2 Regular thread Fine-pitch thread		f ±0.2	l₁ ±0.2	l₂ ±0.4	l₃ ±0.2	l₄	r	Kg≈
FT 6X12	6	12	12	12	6	M6X1	—	0.5	44	37	20	15	0.8	0.015
FT 8X16	8	16	16	16	8	M8X1.25	—	0.5	57	47	25	20	0.8	0.036
FT 10X20	10	20	20	20	10	M10X1.5	—	0.5	69	57	30	25	0.8	0.068
FT 12X24	12	24	24	24	12	M12X1.75	—	0.5	82	68	35	30	0.8	0.122
FT 14X28	14	28	27	27	14	M14X2	—	1.0	94	78	40	35	1.2	0.171
FT 16X32	16	32	32	32	16	M16X2	—	1.0	108	89	45	40	1.2	0.288
FT 20X40	20	40	40	40	20	M20X2.5	—	1.0	134	109	55	50	1.5	0.550

Code of thread: fine-pitch thread – FG, left-handed thread – LH, fine-pitch and left-handed thread-FGLH.

Material and surface treatments:

1) Low carbon steel Q235A; Coated with rust-proof oil, zinc plating or nickel plating.

2) Alternative stainless steel 304, stainless steel 303, stainless steel 316; Surface passivation.

3) Alternative aluminum 6061; Surface cleaning or anodizing finish.

4) Alternative medium carbon steel 45; Coated with rust-proof oil, zinc plating or nickel plating.

Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Clevises with Male Thread DIN71752 DIN ISO8140 CETOP and Clevises with Male Thread DIN71752 DIN ISO8140 CETOP suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Clevises with Male Thread DIN71752 DIN ISO8140 CETOP are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.

Clevises with Male Thread DIN71752 DIN ISO8140 CETOP
