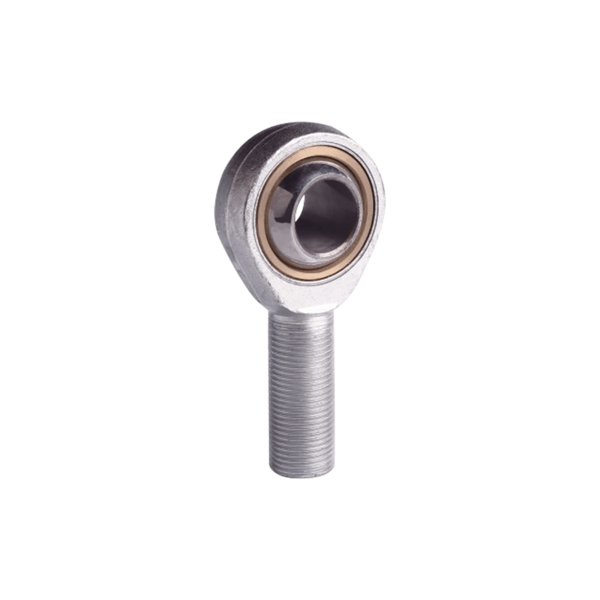

Maintenance-free Rod Ends SA-TK ISO1224-4K

Dongzhou high quality Maintenance-free Rod Ends SA-TK ISO1224-4K is our 4-piece steel on steel range of male rod ends incorporating a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction.

With advantage:
Maintenance free
high shock loads.
Extended wear life
No maintenance
Studded and stainless
steel options

Send Inquiry

Product Description

Dongzhou Factory manufactured Maintenance-free Rod Ends SA-TK ISO1224-4K are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.

Part No.	Dimensions												Load ratings		Weight
	d	d₃ 6g	B	C₁	L₁ min	d₂	l₇	h	L₂	d_k	R_1s	a ≈	dyn. C	stat. C₀	Kg ≈
SA 5 T/K	5	M5X0.8	8	6	19	18		33	42	11.11	0.3	13	5.70	6.00	0.013
SA 6 T/K	6	M6X1.0	9	6.75	21	20		36	46	12.70	0.3	13	7.20	7.65	0.020
SA 8 T/K	8	M8X1.25	12	9	25	24		42	54	15.875	0.3	14	11.6	12.9	0.038
SA 10 T/K	10	M10X1.5	14	10.5	28	28		48	62	19.05	0.3	13	14.5	18.0	0.055
SA 12 T/K	12	M12X1.75	16	12	32	32		54	70	22.225	0.3	13	17.0	24.0	0.085
SA 14 T/K	14	M14X2.0	19	13.5	36	36	18	60	78	25.40	0.3	16	24.0	31.0	0.14
SA 16 T/K	16	M16X2.0	21	15	37	42	21	66	87	28.575	0.3	15	28.5	39.0	0.21
SA 18 T/K	18	M18X2.5	23	16.5	41	44	22	72	94	31.75	0.3	15	42.5	47.5	0.28
SA 18 T/KFG	18	M18X1.5	23	16.5	41	44	22	72	94	31.75	0.3	15	42.5	47.5	0.28
SA 20 T/K	20	M20X2.5	25	18	45	50	25	78	103	34.925	0.3	14	42.5	57.0	0.38
SA 20 T/KFG	20	M20X1.5	25	18	45	50	25	78	103	34.925	0.3	14	42.5	57.0	0.38
SA 22 T/KFG	22	M22X1.5	28	20	48	54	27	84	111	38.10	0.3	15	57.0	68.0	0.48
SA 25 T/KFG	25	M24X2.0	31	22	55	60	30	94	124	42.85	0.3	15	68.0	85.0	0.64
SA 28 T/KFG	28	M27X2.0	35	24	62	66	33	103	136	47.60	0.3	15	86.0	107.0	0.80
SA 30 T/KFG	30	M30X2.0	37	25	66	70	35	110	145	50.80	0.3	17	88.0	114.0	1.10
SA 35 T/KFG	35	M36X2.0	43	28	85	81	41	140	180.5	57.10	0.3	16	•	•	1.64
SA 40 T/KFG	40	M42X2.0	49	33	90	91	46	150	195.5	66.60	0.3	17	•	•	2.30
SA 50 T/KFG	50	M48X2.0	60	45	105	117	59	185	243.5	82.50	0.3	12	•	•	4.80

-For left-hand thread, please add suffix"L" ,e.g.SAL 8T/K.
- For fine-pitch thread, please add suffix "FG", e.g.SA 8 T/KFG.
- General with forging part,also turn part is optional.

Material and surface treatments:

- Body. medium carbon steel 45, zinc plating; Steel ball: bearing steel GCr15 without chromium plating; Inner ring:copper H62; with PTF.
- Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation.

Steel ball: alternative bearing steel GCr15 with hard chrome plating or stainless steel 440C;Inner ring: alternative low carbon steel 20 or stainless steel 304.

Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance-free Rod Ends SA-TK ISO1224-4K and Maintenance-free Rod Ends SA-TK ISO1224-4K suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly.
