Maintenance-free Rod Ends SI-TK ISO1224-4K

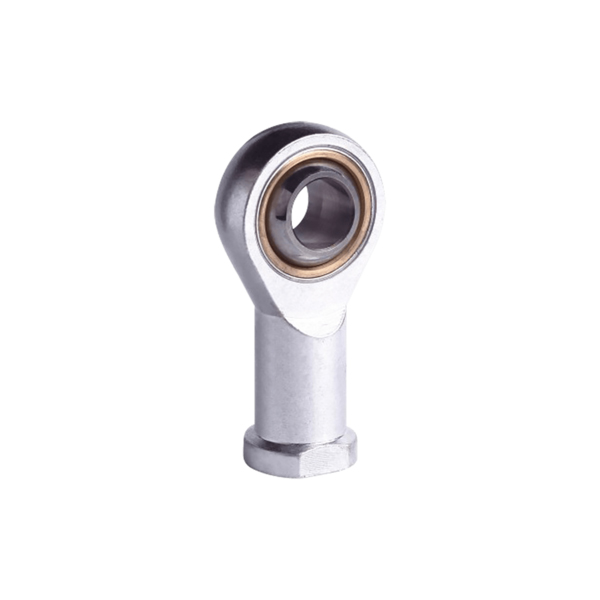

Maintenance-free Rod Ends SI-TK ISO1224-4K from Dongzhou factory is our 4-piece standard range of maintenance-free with PTFE lining general purpose female rod ends suitable for medium heavy industrial/ mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes.

With much advantage: Low friction
Self-lubricating option
Extended wear life
Maintenance free
Studded option
Suitable for Medium/heavy industrial/
mechanical applications
Construction equipment
Agricultural equipment
Recreational vehicles
Precision equipment

Send Inquiry

Product Description

Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance-free Rod Ends SI-TK ISO1224-4K and Maintenance-free Rod Ends SI-TK ISO1224-4K suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on.

Part No.	Dimensions														Load ratings		Weight
	d	d₃ 6H	B	C₁	W	h₁	d₂	L₄	l₅	d₄	d₅	d_k	l₃ -2	a ≈	dyn. C	stat. C₀	Kg ≈
SI 5 T/K	5	M5X0.8	8	6	9	27	18	36	4	8.5	11	11.11	10	13	5.70	6.00	0.016
SI 6 T/K	6	M6X1.0	9	6.75	11	30	20	40	5	10	13	12.70	12	13	7.20	7.65	0.022
SI 8 T/K	8	M8X1.25	12	9	14	36	24	48	5	12.5	16	15.875	16	14	11.6	12.9	0.047
SI 10 T/K	10	M10X1.5	14	10.5	17	43	28	57	6.5	15	19	19.05	20	13	14.5	18.0	0.077
SI 10 T/KFG	10	M10X1.25	14	10.5	17	43	28	57	6.5	15	19	19.05	20	13	14.5	18.0	0.077
SI 12 T/K	12	M12X1.75	16	12	19	50	32	66	6.5	17.5	22	22.225	22	13	17.0	24.0	0.100
SI 12 T/KFG	12	M12X1.25	16	12	19	50	32	66	6.5	17.5	22	22.225	22	13	17.0	24.0	0.100
S1 14 T/K	14	M14X2.0	19	13.5	22	57	36	75	8	20	25	25.40	25	16	24.0	31.0	0.160
SI 14 T/KFG	14	M14X1.5	19	13.5	22	57	36	75	8	20	25	25.40	25	16	24.0	31.0	0.160
S1 16 T/K	16	M16X2.0	21	15	22	64	42	85	8	22	27	28.575	28	15	28.5	39.0	0.220
SI 16 T/KFG	16	M16X1.5	21	15	22	64	42	85	8	22	27	28.575	28	15	28.5	39.0	0.220
SI 18 T/K	18	M18X2.5	23	16.5	27	71	44	93	10	25	31	31.75	32	15	42.5	47.5	0.320
SI 18 T/KFG	18	M18X1.5	23	16.5	27	71	44	93	10	25	31	31.75	32	15	42.5	47.5	0.320
SI 20 T/K	20	M20X2.5	25	18	30	77	50	102	10	27.5	34	34.925	33	14	42.5	57.0	0.420
SI 20 T/KFG	20	M20X1.5	25	18	30	77	50	102	10	27.5	34	34.925	33	14	42.5	57.0	0.420
SI 22 T/KFG	22	M22X1.5	28	20	32	84	54	111	12	30	38	38.10	37	15	57.0	68.0	0.540
SI 25 T/KFG	25	M24X2.0	31	22	36	94	60	124	12	33.5	42	42.85	42	15	68.0	85.0	0.720
SI 28 T/KFG	28	M27X2.0	35	24	41	103	66	136	14	37	46	47.60	51	15	86.0	107.0	0.820
SI 30 T/KM27X2	30	M27x2.0	37	25	41	110	70	145	15	40	50	50.80	51	17	88.0	114.0	1.100
SI 30 T/KFG	30	M30X2.0	37	25	41	110	70	145	15	40	50	50.80	51	17	88.0	114.0	1.100
SI 35 T/KFG	35	M36X2.0	43	28	50	125	81	165.5	17	46	58	57.10	58	16	•	•	1.600
SI 40 T/KFG	40	M42X2.0	49	33	55	142	91	187.5	19	53	65	66.60	62	17	•	•	2.400
SI 50 T/KFG	50	M48X2.0	60	45	65	160	117	218.5	23	65	75	82.50	67	12	•	•	5.000

- For left-hand thread, please add suffix "L"，e.g.SIL 8T/K.

- For fine-pitch thread, please add suffix "FG",e.g. SI8T/KFG.

- General with forging part, also turn part is optional.

Maintenance-free Rod Ends SI-TK ISO1224-4K Material and surface treatments:

- Body: medium carbon steel 45,zinc plating; Steel ball: bearing steel GCr15 without chromium plating:Inner ring: brass H62, with PTFE;

- Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation or electrolytic treatment.

Steel ball:alternative bearing steel GCr15 with hard chrome plating or stainless steel 40C;Inner ring: alternative low carbon steel 20 or stainless steel 304.

Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Rod Ends SI-TK ISO1224-4K are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
