CF Maintenance Required Rod Ends

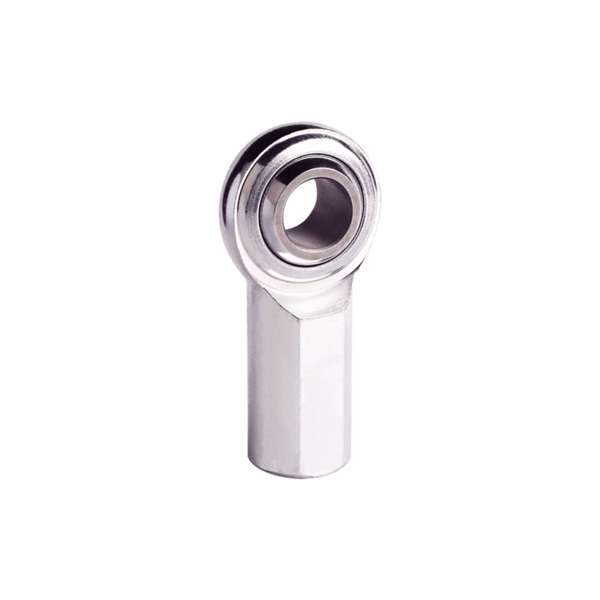

Dongzhou is a professional China CF Maintenance Required Rod Ends manufacturer and supplier. Maintenance required female rod end with body pressed around inner ring. Lubricating hole or grease nipple is available for the size bigger than CF5. Inch sizes and popular in USA market with large load capacity and mechanism simplification.
Send Inquiry
Product Description
|
Part No |
Dimensions |
Load ratings |
Weight |
||||||||||
|
|
d |
B |
C1 |
h1 |
d2 |
d5 |
W |
dk |
L3 min |
d3 2B |
a ≈
|
|
Kg ≈
|
|
CF3* |
0.1900 |
0.312 |
0.234 |
1.062 |
0.625 |
0.406 |
0.312 |
0.437 |
0.500 |
10-32 |
10 |
9.247 |
0.018 |
|
CF4* |
0.2500 |
0.375 |
0.250 |
1.312 |
0.750 |
0.469 |
0.375 |
0.500 |
0.687 |
1/4-28 |
13.5 |
14.269 |
0.023 |
|
CF5* |
0.3125 |
0.437 |
0.312 |
1.375 |
0.875 |
0.500 |
0.437 |
0.625 |
0.687 |
5/16-24 |
11 |
17.009 |
0.036 |
|
CF6 |
0.3750 |
0.500 |
0.359 |
1.625 |
1.000 |
0.687 |
0.562 |
0.719 |
0.812 |
3/8-24 |
11 |
22.627 |
0.059 |
|
CF7 |
0.4375 |
0.562 |
0.406 |
1.812 |
1.125 |
0.750 |
0.625 |
0.812 |
0.937 |
7/16-20 |
10.5 |
28.400 |
0.082 |
|
CF8 |
0.5000 |
0.625 |
0.453 |
2.125 |
1.312 |
0.875 |
0.750 |
0.937 |
1.062 |
1/2-20 |
10 |
40.459 |
0.132 |
|
CF10 |
0.6250 |
0.750 |
0.484 |
2.500 |
1.500 |
1.000 |
0.875 |
1.125 |
1.375 |
5/8-18 |
13 |
43.203 |
0.195 |
|
CF12 |
0.7500 |
0.875 |
0.593 |
2.875 |
1.750 |
1.125 |
1.000 |
1.312 |
1.562 |
3/4-16 |
12 |
63.193 |
0.295 |
- Rod body is pressed around inner ring.
- Lubricating hole or grease nipple isn't available for the sizes marked “*” . When grease nipple is required for other sizes, please use the sign CF..C.
- If assembling with rod, please add suffix “s” , e.g.CF 8S.
- Load ratings only apply to rod ends without grease nipple.
- For left-hand thread, please add suffix " L" ,e.g.CFL 8.
- All with turn part.
Material and surface treatments:
- Body: medium carbon steel 45, zinc plating; steel ball: bearing steel with hard chrome plating.
- Body: stainless steel 304,stainless steel 303 or stainless steel316 is optional with surface passivation.
steel ball:alternative stainless steel 440C.
