Inch Dimensions High Loaded Injection Rod Ends PXM

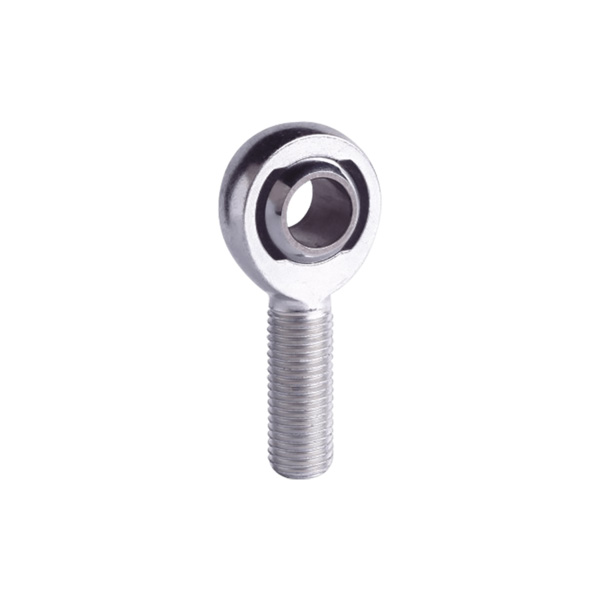

Dongzhou is a leading China Inch Dimensions High Loaded Injection Rod Ends PXM manufacturer, supplier and exporter. Self-lubricated male rod ends with structure of steel to nylon. Many functions of high load, low noise, excellent moisture resistance and require no maintenance and have a wide operating temperature rang.
Send Inquiry
Product Description
|
Part No. |
Dimensions |
Weight |
||||||||
|
|
B +0.0015 -0.0005 |
W ±0.005 |
T ±0.005 |
A ±0.015 |
D ±0.010 |
Ball DIA REF |
C +0.062 -0.031 |
Thread UNF-3A |
a° Misalign Angle |
Kg ≈ |
|
PXM3 |
0. 1900 |
0. 312 |
0.250 |
1.250 |
0.625 |
0.437 |
0.750 |
10-32 |
13 |
0.013 |
|
PXM4 |
0. 2500 |
0. 375 |
0.281 |
1.562 |
0.750 |
0.500 |
1.000 |
1/4-28 |
16 |
0.018 |
|
PXM4-5 |
0. 2500 |
0. 375 |
0.281 |
1.875 |
0.875 |
0.500 |
1.250 |
5/16-24 |
13 |
0.032 |
|
PXM5 |
0. 3125 |
0. 437 |
0.344 |
1.875 |
0.875 |
0.625 |
1.250 |
5/16-24 |
14 |
0.032 |
|
PXM5-6 |
0. 3125 |
0. 437 |
0.344 |
1.938 |
1.000 |
0.625 |
1.250 |
3/8-24 |
12 |
0.050 |
|
PXM6 |
0. 3750 |
0. 500 |
0.406 |
1.938 |
1.000 |
0.719 |
1.250 |
3/8-24 |
12 |
0.050 |
|
PXM6-7 |
0. 3750 |
0. 500 |
0.406 |
2.125 |
1.125 |
0.719 |
1.375 |
7/16-20 |
10 |
0.068 |
|
PXM7 |
0. 4375 |
0. 562 |
0.437 |
2.125 |
1.125 |
0.812 |
1.375 |
7/16-20 |
14 |
0.068 |
|
PXM7-8 |
0. 4375 |
0. 562 |
0.437 |
2.438 |
1.312 |
0.812 |
1.500 |
1/2-20 |
12 |
0.11 |
|
PXM8 |
0. 5000 |
0. 625 |
0.500 |
2.438 |
1.312 |
0.937 |
1.500 |
1/2-20 |
12 |
0.11 |
|
PXM8-10 |
0. 5000 |
0. 625 |
0.500 |
2.625 |
1.500 |
0.937 |
1.625 |
5/8-18 |
10 |
0.163 |
|
PXM8-12 |
0. 5000 |
0. 750 |
0.562 |
2.875 |
1.750 |
0.937 |
1.750 |
3/4-16 |
16 |
0.190 |
|
PXM10 |
0. 6250 |
0. 750 |
0.562 |
2.625 |
1.500 |
1.125 |
1.625 |
5/8-18 |
16 |
0.163 |
|
PXM10-12 |
0. 6250 |
0. 750 |
0.562 |
2.875 |
1.750 |
1.125 |
1.750 |
3/4-16 |
13 |
0.258 |
|
PXM12 |
0. 7500 |
0. 875 |
0.687 |
2.875 |
1.750 |
1.312 |
1.750 |
3/4-16 |
14 |
0.258 |
|
PXM12-14 |
0. 7500 |
0. 875 |
0.687 |
3.375 |
2.000 |
1.312 |
1.875 |
7/8-14 |
12 |
0.399 |
|
PXM14 |
0. 8750 |
0. 875 |
0.765 |
3.375 |
2.000 |
1.375 |
2.000 |
7/8-14 |
7 |
0.399 |
|
PXM16 |
1. 0000 |
1. 375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
11/4-12 |
17 |
1.093 |
|
PXM16-1 |
1. 0000 |
1. 375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1-14 |
17 |
0.966 |
|
PXM16-2 |
1. 0000 |
1. 375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1-12 |
17 |
0.966 |
Material and surface treatments:
- Body: alloy steel 35CrMo with heat treating. Alternative stainless steel with surface passivation.
- Steel ball: bearing steel GCr15 with hard chrome plating. Alternative stainless steel 440C
- Race: nylon.
- For left-hand thread, please add suffix“L” , e.g. PXML 8.
