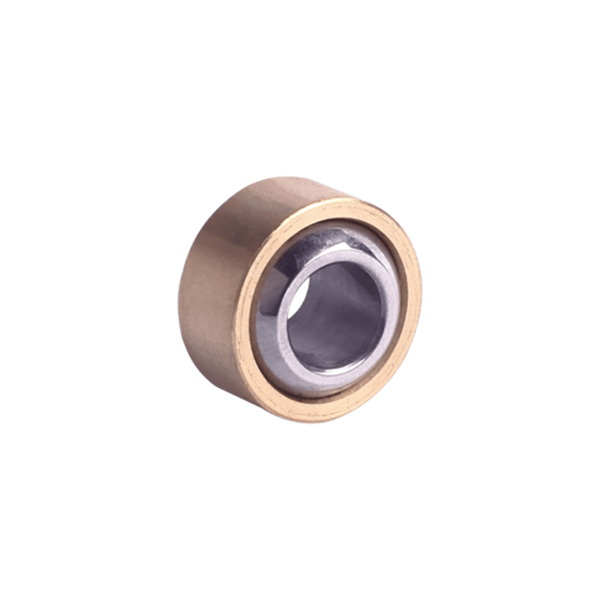

Maintenance-free Radial Spherical Plain Bearings G PW

Maintenance-free Radial Spherical Plain Bearings G PW is 2-piece materic range with PTFE lining, compose with brass H62 and bearing steel ball. Carbon steel, stainless steel are both option for the outer ring.

Send Inquiry

Product Description

Part No.	Dimensions							Load ratings		Weight
	d	d₁	B	C	D	d_k	a ≈	dyn. C	stat. C₀	Kg ≈
G 5 PW	5	7.7	8	6	13	11.113	13	6.2	17	0.007
G 6 PW	6	8.9	9	6.75	16	12.700	13	7.5	22	0.010
G 8 PW	8	10.3	12	9	19	15.875	13	12	36	0.016
G 10 PW	10	12.9	14	10.5	22	19.050	13	17	50	0.031
G 12 PW	12	15.4	16	12	26	22.225	13	22	67	0.065
G 14 PW	14	16.8	19	13.5	28	25.400	15	28	86	0.090
G 16 PW	16	19.3	21	15	32	28.575	15	35	107	0.100
G 18 PW	18	21.8	23	16.5	35	31.750	15	47	131	0.125
G 20 PW	20	24.3	25	18	40	34.925	15	51	157	0.180
G 22 PW	22	25.8	28	20	42	38.100	15	62	191	0.210
G 25 PW	25	29.5	31	22	47	42.850	15	77	236	0.295
G 30 PW	30	34.8	37	25	55	50.800	15	103	318	0.425
G 35 PW	35	37.7	43	28	62	57.100	16	130	400	0.500
G 40 PW	40	45.2	49	33	75	66.600	17	179	550	0.900
G 50 PW	50	56.6	60	45	90	82.500	12	302	928	1.640

- Out ring in brass H62; steel ball in bearing steel GCr15 without chromium plating;

out race is lined with PTFE composite material, the model is G..PW.

- If out ring in brass H62; steel ball in stainless steel 440C;

out race is lined with PTFE composite material, the model is G..PWSS.

- If out ring in carbon steel 20; steel ball in bearing steel GCr15 without chromium plating;

out race is lined with PTFE composite material, the model is ST..PW.

- If out ring in stainless steel 304, steel ball in stainless steel 440C;

out race is lined with PTFE composite material, the model is SS..PW.

Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance-free Radial Spherical Plain Bearings G PW and Maintenance-free Radial Spherical Plain Bearings G PW suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Radial Spherical Plain Bearings G PW are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
