Maintenance required Radial Spherical Plain Bearings COM HCOM

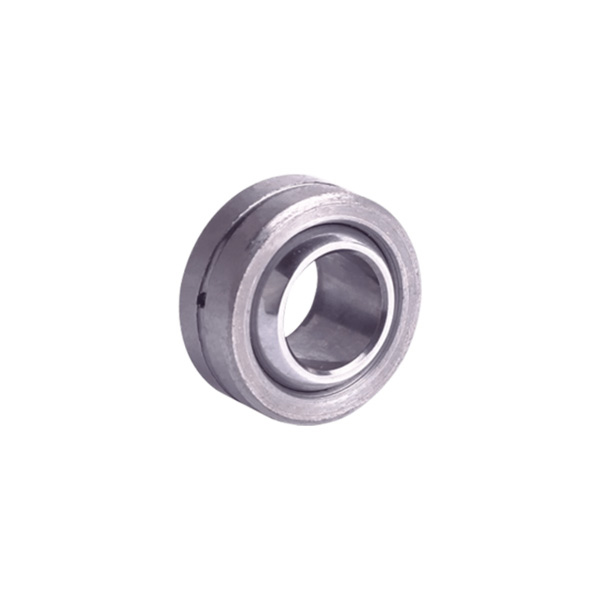

Maintenance required Radial Spherical Plain Bearings COM HCOM with the sliding contact surfaces of steel to steel. Outer ring is pressed around inner ring. It has characteristics of good flexibility, wear-resistance and self-aligning, apply to low speed and heavy load mechanism.
Send Inquiry
Product Description
|
Part No. |
Dimensions |
Load ratings |
Weight |
|||||||
|
|
d |
d1 |
B |
C |
D |
dk |
m |
a ≈ |
|
Kg ≈ |
|
COM 3 |
4.826 |
7.44 |
7.14 |
5.54 |
14.29 |
10.31 |
0.381 |
11 |
14.464 |
0.006 |
|
COM 4 |
6.350 |
9.25 |
8.71 |
6.35 |
16.67 |
12.70 |
0.560 |
13.5 |
22.015 |
0.010 |
|
COM 5 |
7.938 |
10.64 |
9.53 |
7.14 |
19.05 |
14.27 |
0.810 |
12 |
28.800 |
0.014 |
|
COM 6 |
9.525 |
13.11 |
10.31 |
7.92 |
20.64 |
16.66 |
0.810 |
10 |
37.361 |
0.017 |
|
COM 7 |
11.113 |
13.46 |
11.10 |
8.71 |
23.02 |
17.45 |
0.810 |
8.0 |
42.048 |
0.021 |
|
COM 8 |
12.700 |
16.26 |
12.70 |
9.91 |
25.40 |
20.65 |
0.810 |
9.5 |
58.934 |
0.029 |
|
COM 9 |
14.288 |
18.03 |
14.27 |
11.10 |
27.78 |
23.01 |
0.810 |
9.5 |
73.967 |
0.039 |
|
COM 10 |
15.875 |
19.81 |
15.88 |
12.70 |
30.16 |
25.40 |
0.810 |
8.5 |
94.658 |
0.050 |
|
COM 12 |
19.050 |
23.37 |
19.05 |
15.06 |
36.51 |
30.15 |
1.120 |
9.0 |
141.982 |
0.093 |
|
COM 14 |
22.225 |
24.89 |
22.23 |
17.86 |
39.69 |
33.32 |
1.120 |
9.5 |
186.639 |
0.119 |
|
COM 16 |
25.400 |
28.40 |
25.40 |
20.24 |
44.45 |
38.10 |
1.120 |
10 |
245.534 |
0.175 |
|
HCOM 16 |
25.400 |
34.54 |
25.40 |
19.84 |
50.80 |
42.85 |
0.810 |
9.0 |
315.010 |
0.251 |
|
HCOM 19 |
30.163 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
448.049 |
0.406 |
|
HCOM 20 |
31.750 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
448.049 |
0.406 |
|
HCOM 24 |
38.100 |
47.24 |
34.93 |
27.79 |
69.85 |
58.72 |
0.810 |
8.5 |
604.710 |
0.616 |
|
HCOM 28 |
44.450 |
53.59 |
39.67 |
31.75 |
79.38 |
66.68 |
1.120 |
8.0 |
784.495 |
0.884 |
|
HCOM 32 |
50.800 |
59.94 |
44.45 |
34.93 |
88.90 |
74.60 |
1.120 |
8.5 |
965.485 |
1.198 |
- Sliding contact surfaces: steel / steel.
- Outer ring is carbon steel; Inner ring is bearing steel GCr15 with hard chrome plating.
- Outer ring is pressed around inner ring.
- Lubricating groove and holes in the outer ring.
- Dimensions in inches.
Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance required Radial Spherical Plain Bearings COM HCOM and Maintenance required Radial Spherical Plain Bearings COM HCOM suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance required Radial Spherical Plain Bearings COM HCOM are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
