Maintenance-free Radial Spherical Plain Bearings

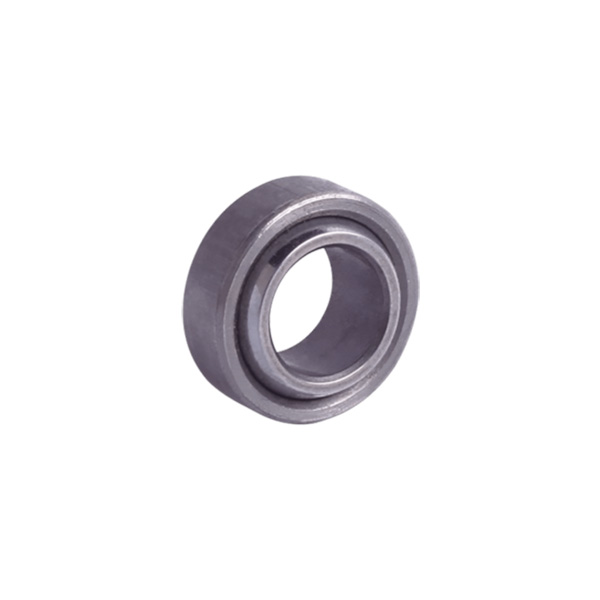

Maintenance-free Radial Spherical Plain Bearings COM..T/HCOM...T is our 2-piece metric range of general purpose spherical plain bearings, incorporates a thin PTFE fabric between the ball and the outer ring. This series do not require maintenance. Dimensions suited to auto-sport and racing application.
Send Inquiry
Product Description
|
Part No. |
Dimensions |
Load ratings |
Weight |
|||||||
|
|
d |
d1 |
B |
C |
D |
dk |
m |
a ≈ |
|
Kg ≈ |
|
COM 3 T |
4.826 |
7.44 |
7.14 |
5.54 |
14.29 |
10.31 |
0.381 |
11 |
21.68 |
0.006 |
|
COM 4 T |
6.350 |
9.25 |
8.71 |
6.35 |
16.67 |
12.70 |
0.560 |
13.5 |
33.02 |
0.010 |
|
COM 5 T |
7.938 |
10.64 |
9.53 |
7.14 |
19.05 |
14.27 |
0.810 |
12 |
43.20 |
0.014 |
|
COM 6 T |
9.525 |
13.11 |
10.31 |
7.92 |
20.64 |
16.66 |
0.810 |
10 |
56.04 |
0.017 |
|
COM 7 T |
11.113 |
13.46 |
11.10 |
8.71 |
23.02 |
17.45 |
0.810 |
8.0 |
63.07 |
0.021 |
|
COM 8 T |
12.700 |
16.26 |
12.70 |
9.91 |
25.40 |
20.65 |
0.810 |
9.5 |
88.39 |
0.029 |
|
COM 9 T |
14.288 |
18.03 |
14.27 |
11.10 |
27.78 |
23.01 |
0.810 |
9.5 |
110.94 |
0.039 |
|
COM 10 T |
15.875 |
19.81 |
15.88 |
12.70 |
30.16 |
25.40 |
0.810 |
8.5 |
141.96 |
0.050 |
|
COM 12 T |
19.050 |
23.37 |
19.05 |
15.06 |
36.51 |
30.15 |
1.120 |
9.0 |
212.94 |
0.093 |
|
COM 14 T |
22.225 |
24.89 |
22.23 |
17.86 |
39.69 |
33.32 |
1.120 |
9.5 |
279.93 |
0.119 |
|
COM 16 T |
25.400 |
28.40 |
25.40 |
20.24 |
44.45 |
38.10 |
1.120 |
10 |
368.25 |
0.175 |
|
HCOM 16 T |
25.400 |
34.54 |
25.40 |
19.84 |
50.80 |
42.85 |
0.810 |
9.0 |
472.46 |
0.251 |
|
HCOM 19 T |
30.163 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
672.00 |
0.406 |
|
HCOM 20 T |
31.750 |
40.89 |
30.15 |
23.80 |
60.33 |
50.80 |
0.810 |
8.5 |
672.00 |
0.406 |
|
HCOM 24 T |
38.100 |
47.24 |
34.93 |
27.79 |
69.85 |
58.72 |
0.810 |
8.5 |
906.96 |
0.616 |
|
HCOM 28 T |
44.450 |
53.59 |
39.67 |
31.75 |
79.38 |
66.68 |
1.120 |
8.0 |
1176.61 |
0.884 |
|
HCOM 32 T |
50.800 |
59.94 |
44.45 |
34.93 |
88.90 |
74.60 |
1.120 |
8.5 |
1448.06 |
1.198 |
- Sliding contact surfaces: steel / PTFE composite material.
- Outer ring is carbon steel; Inner ring is bearing steel GCr15 with hard chrome plating.
- Outer ring is pressed around inner ring.
- Outer race lined with PTFE composite material.
- Dimensions in inches.
Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance-free Radial Spherical Plain Bearings and Maintenance-free Radial Spherical Plain Bearings suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Radial Spherical Plain Bearings are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
Hot Tags: Maintenance-free Radial Spherical Plain Bearings, China, Manufacturer, Supplier, Factory, Customized, in Stock
