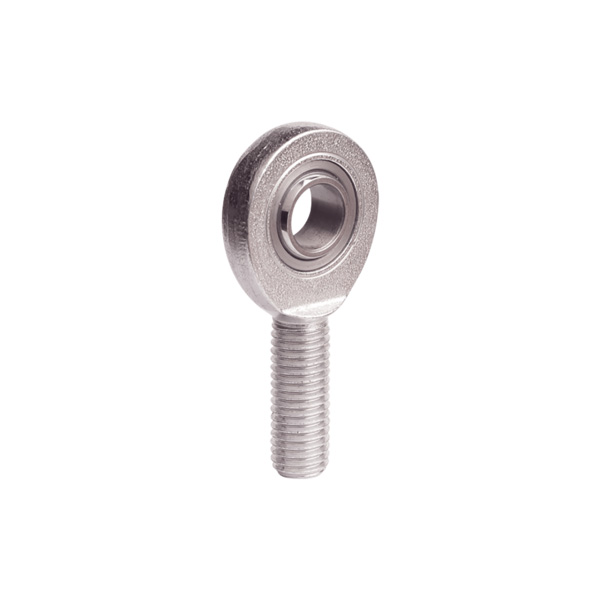

Maintenance-free Rod Ends GAR-UK
As the professional manufacturer, we would like to provide you high quality Maintenance-free Rod Ends GAR-UK. Self lubrication male forged rod ends with PTFE lining and hard chromed bearing steel ball. With function of wear-resistance, self-aligning and low friction.
Send Inquiry
Product Description
Ningbo Dongzhou Transmission Co., ltd is Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Ningbo Dongzhou Transmission Co., ltd is leading manufacturer of Maintenance-free Rod Ends GAR-UK and Maintenance-free Rod Ends GAR-UK suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on.
|
Part No. |
Dimensions |
Load ratings |
Weight |
||||||||||||
|
|
d |
d3 6g |
B |
C1 |
d2 |
L2 |
h |
L7 |
L1 min |
dk |
R1s |
a ≈ |
dyn. c |
stat. C0 |
Kg≈ |
|
GAR 6 UK |
6 |
M6X1.0 |
6 |
4.4 |
21 |
46.5 |
36 |
12 |
18 |
10 |
0.3 |
13 |
3.60 |
8.15 |
0.017 |
|
GAR 8 UK |
8 |
M8X1.25 |
8 |
6 |
24 |
54 |
42 |
14 |
22 |
13 |
0.3 |
15 |
5.85 |
12.9 |
0.029 |
|
GAR 10 UK |
10 |
M10X1.5 |
9 |
7 |
29 |
62.5 |
48 |
15 |
26 |
16 |
0.3 |
12 |
8.65 |
17.6 |
0.051 |
|
GAR 12 UK |
12 |
M12X1.75 |
10 |
8 |
34 |
71 |
54 |
18 |
28 |
18 |
0.3 |
11 |
11.4 |
24.5 |
0.086 |
|
GAR 15 UK |
15 |
M14X2.0 |
12 |
10 |
40 |
83 |
63 |
20 |
34 |
22 |
0.3 |
8 |
17.6 |
36.0 |
0.14 |
|
GAR 17 UK(2RS) |
17 |
M16X2.0 |
14 |
11 |
46 |
92 |
69 |
23 |
36 |
25 |
0.3 |
10 |
22.4 |
45.0 |
0.19 |
|
GAR 20 UK(2RS) |
20 |
M20X1.5 |
16 |
13 |
53 |
104.5 |
78 |
27 |
43 |
29 |
0.6 |
9 |
31.5 |
60.0 |
0.31 |
|
GAR 25 UK(2RS) |
25 |
M24X2.0 |
20 |
17 |
64 |
126 |
94 |
32 |
53 |
35.5 |
0.6 |
7 |
51.0 |
83.0 |
0.56 |
|
GAR 30 UK(2RS) |
30 |
M30X2.0 |
22 |
19 |
73 |
146.5 |
110 |
37 |
65 |
40.7 |
0.6 |
6 |
66.5 |
110 |
0.89 |
|
GAR 35 UK2RS |
35 |
M36X3.0 |
25 |
21 |
82 |
181 |
140 |
42 |
82 |
47 |
0.6 |
6 |
112 |
146 |
1.40 |
|
GAR 40 UK2RS |
40 |
M39X3.0 |
28 |
23 |
92 |
196 |
150 |
48 |
86 |
53 |
0.6 |
7 |
140 |
180 |
1.80 |
|
GAR 45 UK2RS |
45 |
M42X3.0 |
32 |
27 |
102 |
214 |
163 |
52 |
94 |
60 |
0.6 |
7 |
180 |
240 |
2.60 |
|
GAR 50 UK2RS |
50 |
M45X3.0 |
35 |
30 |
112 |
241 |
185 |
60 |
107 |
66 |
0.6 |
6 |
220 |
290 |
3.40 |
|
GAR 60 UK2RS |
60 |
M52X3.0 |
44 |
38 |
135 |
277.5 |
210 |
75 |
115 |
80 |
1.0 |
6 |
345 |
450 |
5.90 |
|
GAR 70 UK2RS |
70 |
M56X4.0 |
49 |
42 |
160 |
315 |
235 |
87 |
125 |
92 |
1.0 |
6 |
440 |
610 |
8.20 |
|
GAR 80 UK2RS |
80 |
M64X4.0 |
55 |
47 |
180 |
360 |
270 |
100 |
140 |
105 |
1.0 |
6 |
570 |
750 |
12.0 |
- It is made up of a maintenance-free radial spherical plain bearing GE..UK or GE..UK 2RS and rod body.
- For bearings d>17, GIR..UK 2RS also available, e.g.GAR 20 UK 2RS.
- For left-hand thread, please add suffix "L" ,e.g.GARL 20UK.
- All with forging part.
- Body: medium carbon steel 45, zinc plating; Inner ring and steel ball: both bearing steel GCr15.
