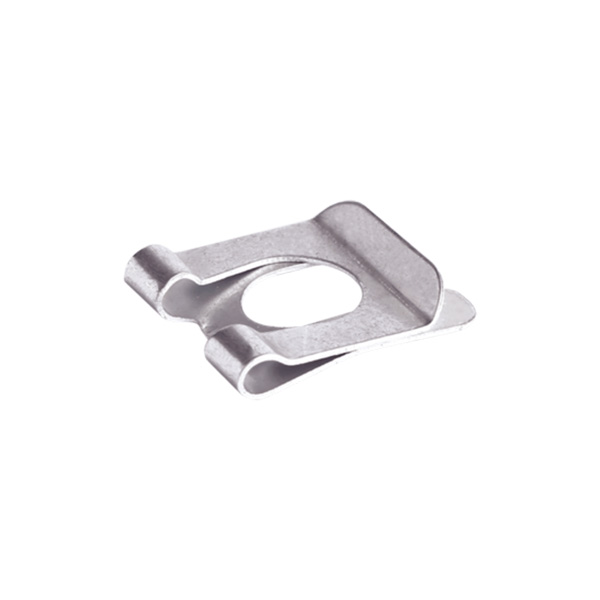

PM-S Retainers for Bolts
The high quality PM-S Retainers for Bolts is our standard range of metric safety clips for use with FK and FT Clevis joints. They are easily pre-assembled or removed by hand without the need for any tools. PM-safety clips are designed for use with PM clevis pins.
Send Inquiry
Product Description
Ningbo Dongzhou Transmission Co., Ltd. is a leading China PM-S Retainers for Bolts manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our PM-S Retainers for Bolts have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our services, you can consult us now, we will reply to you in time!
|
Part No. |
Nom. Size |
Retainer |
Max.axial thrust ca.N |
Weight |
Bolts |
||||||||
|
|
d1 |
b |
h |
h1 |
a≈ |
S |
|
100 pcs |
d1 h11 |
d2 h11 |
m +0.1 |
n |
z |
|
PM-S4 |
4 |
7 |
8.5 |
4.0 |
2.3 |
0.3 |
1000 |
0.019 |
4 |
3.2 |
0.64 |
2.0 |
0.50 |
|
PM-S5 |
5 |
9 |
10.7 |
5.0 |
3.3 |
0.4 |
1300 |
0.034 |
5 |
4.0 |
0.74 |
2.5 |
0.50 |
|
PM-S6 |
6 |
11 |
14.1 |
6.0 |
3.8 |
0.4 |
1500 |
0.063 |
6 |
5.0 |
0.74 |
3.0 |
0.75 |
|
PM-S8 |
8 |
14 |
17.5 |
8.0 |
4.0 |
0.5 |
3600 |
0.109 |
8 |
6.0 |
0.94 |
3.5 |
1.00 |
|
PM-S10 |
10 |
18 |
22.1 |
10.0 |
5.0 |
0.5 |
6400 |
0.211 |
10 |
8.0 |
1.05 |
4.5 |
1.00 |
|
PM-S12 |
12 |
22 |
26.0 |
12.0 |
5.0 |
0.5 |
9600 |
0.280 |
12 |
9.0 |
1.15 |
5.0 |
1.25 |
|
PM-S14 |
14 |
25 |
30.0 |
13.5 |
6.0 |
0.6 |
11320 |
0.474 |
14 |
10.0 |
1.25 |
5.5 |
1.50 |
|
PM-S16 |
16 |
28 |
34.0 |
16.0 |
6.0 |
0.6 |
13500 |
0.563 |
16 |
12.0 |
1.35 |
6.0 |
1.50 |
Material: Spring steel.
Surface treatment: Coated with rust-proof oil, zinc plating or nickel plating.
-Example of application：
